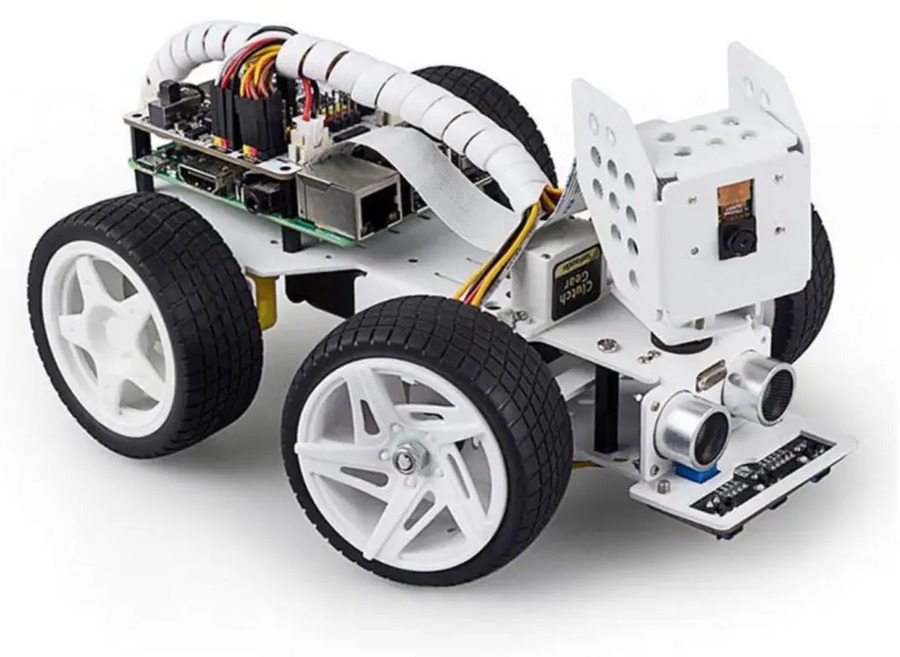

robotindex SunFounder PiCar-X
An AI-focused Raspberry Pi robot car kit built around genuine Ackermann-style front-wheel steering — a dedicated steering servo turns the front wheels like a real car, rather than the skid-steer turning most Pi robot kits use. Ships with an ultrasonic sensor, a line-tracking module, and a pan-tilt camera for OpenCV-based face, color, and traffic-sign detection, controllable through either block-based EzBlock Studio or Python. Distinct from SunFounder's own similarly-named PiCar-V and PiCar-S kits, which are older, skid-steer, and less AI-focused.
sunfounder.com/products/picar-x →
Image: SunFounder (official)
Specs
Battery
18650 Li-ionrechargeable, user-installed
Weight
Not publisheda ~1.76 lb (0.8kg) figure appears in third-party listings, but SunFounder's own forum confirms no official assembled-robot spec exists
Dimensions
Not publisheda ~10 × 6.5 × 4 in figure appears in third-party listings, but provenance (robot vs. packaging) is unconfirmed
Sensors
Ultrasonic + grayscaleline-tracking / edge-detection array
Compute
Raspberry Pi 3B+ – 5not included in the base kit
Camera
2-axis pan-tiltface, color, and traffic-sign detection via OpenCV
Software
EzBlock + Pythonblock-based or code; picar-x/vilib libraries
Steering
Ackermann, frontdedicated steering servo; rear wheels drive
AI Layer
LLM voice assistantrecent add-on: ChatGPT/Gemini/other model integration
Assembly
No solderingscrew/snap assembly; servo-zeroing step required
Reference Price
SunFounder's own store lists the base kit (no Raspberry Pi included) at $89.99, with Amazon and AliExpress listings observed anywhere from roughly $75–$130 depending on promotions; a bundled version with a Raspberry Pi Zero 2 W and 32GB card runs significantly higher, around $145–$155. Pricing fluctuates by channel and sale, and the "Pi not included" base configuration is easy to order by mistake if a listing isn't read carefully.
Insights
The core picar-x control library is genuinely open source on GitHub under GPL-2.0, but the companion EzBlock Studio app is closed and cloud-dependent — one independent review flagged an insecure, HTTP-only (not HTTPS) login form in that companion software as a genuine security concern. SunFounder's own support forum also shows a real, recurring pattern of Raspberry Pi 5-specific problems (dead servos, failed Wi-Fi setup, non-working camera or microphone), despite Pi 5 being listed as officially supported.
Firmware & Community
sunfounder/picar-x
SunFounder's own official Python library repository for PiCar-X.
Verified against SunFounder's official PiCar-X product page, documentation site (including the assembly and introduction docs), and curriculum page; the PiCar-V and PiCar-S documentation (for the naming-lineage comparison); SunFounder's GitHub organization (picar-x, robot_hat, vilib, picar-x-web-control repositories) and their license/commit history; independent reviews from CNX Software, RaspberryTips, and NotEnoughTech; SunFounder's own support forum threads on Raspberry Pi 5 compatibility; an academic open-source project (Kiel University's ARCHES-PiCar-X) as evidence of research-adjacent use; and manufacturer/distributor listings from Yahboom, Waveshare, ELEGOO, and Freenove for the competitive comparison. Flagged as uncertain: exact camera resolution and field-of-view (not published in specs, only described by feature), precise current Amazon review scores (not independently retrievable at research time), and live AliExpress pricing, which varies by listing and easily gets confused with SunFounder's other PiCar lines.
